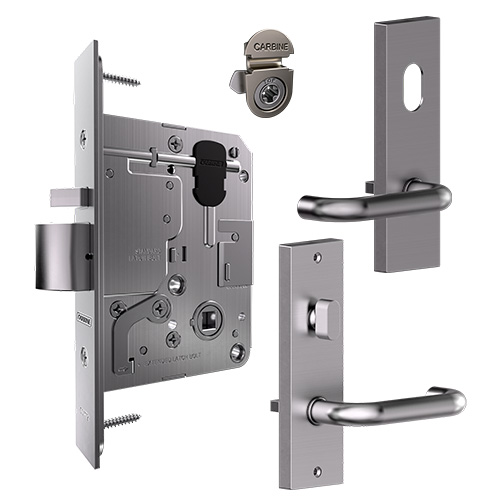

Carbine Longreach Mortice Lock and Serens Lever with Turnsnib Set

The Carbine Longreach 60mm standard backset latching mortice lock is built for high-performance security in commercial and residential applications. Featuring a selectable 15mm or extended 19.5mm latchbolt projection, a refined 45-degree lever operation, and fire-rated durability, Longreach combines smooth functionality with exceptional strength. Fully retrofit-compatible and tested to over 1 million latching cycles, it’s the future of mortice locking.

This option is supplied with a Carbine Serens CSF19 Turn and lever internal rectangular plate 7 Lever in Stainless Steel and a Carbine Serens CSF19 Lever only internal rectangular plate 7 Lever in Stainless Steel

• Selectable extended latch bolt projection.
• The latch bolt can be set at the standard length of 15mm.
• THe latch bolt can be set at an extended length of 19.5mm.
• Deadlatching is operational at both standard and extended latch bolt positions
• Improved deadlatching mechanism allows deadlatching to be operational with door gaps up to 9.5mm.
• Fire rated for 4 hours
• Improved latching mechanism to prevent door jamming on closing.
• Hardened steel lock bar protection cover to prevent manipulation.
• 45 degree lever operation of unlatching latch bolt from striker plate.
• Through fixing oval cylinder escutcheon with Carbine Crisi round furniture.
• Selectable Anti-lockout mode (use allen key provided not impact driver)
• The lock is functional with oval cylinders fitted with the standard W, X and Z cams. (Sold separately)
• Retrofittable into doors fitted with existing equivalent latching mortice locks.
• Hold back mode can be configured with our Carbine hold back cam (handed) fitted on an oval cylinder. (Sold separately)
• Latch bolt and deadlatching snib handing for Installation on left- and right-hand opening doors.
• Compatible with most electric strikes.
• Rebate kit available (CSM72-P-RK-SS). (Sold separately)
• 60mm backset
• Optimal (and minimum) door clearance between door and door frame is 3mm with a maximum of 5mm.
• Installation on inward and outward opening doors.
• Stainless steel casing, face plate, latch bolt and deadlatching snib
• Cycle tested to 1,000,000 cycles, far exceeding the highest level of D8 of Australian Standard AS4145:2008*.
• Corrosion tested to 240 hours (equivalent to level C7 of Australian Standard AS4145:2008)*.
• Strength and security tested to the equivalent of S8 of Australian Standard AS4145:2008*. *Tested with Carbine Crisi furniture

*Please note this is not supplied with lock cylinders*
