Carbine CEL2 Digital Leverset Standalone

The Carbine CEL2 electronic digital locks are available in a leverset and deadbolt model and in both satin nickel or matte black finishes.

Never worry about a lost key again as CEL2 has several keyless access options including a 4 to 8 digit code, NFC* enabled smartphone or via a number of RFID accessories. CEL2 comes in a leverset or deadbolt option, as well as a 2 hour fire rated leverset model making the CEL2 a great selection for use on emergency exits or fire doors.*

CEL2 has been designed to IP54 standards and all leverset models are NCC compliant.

*We recommend checking your smartphone before purchasing or installing. If your phone is not compatible we suggest using the RFID sticker on the back of your phone. For fire rated details please visit www.carbine.com.au/fire-rated

• Recommended for medium use installations
• New stylish escutcheon with lower profile
• Improved touchscreen and motor function
• Fits in standard 54 mm lockset hole, no additional drilling required
• Fits from 35-51mm thick doors
• Touch keypad with backlight
• Entry by code, key or RFID media
• 1 programming code, 100 user codes or RFID cards
• 2 Hour fire rating (Note: separate model for fire door installations)
• IP Rating of IP54 (external)
• SL8 style lever which is NCC compliant
• Key override
• RFID entry
• Works on MIFARE S50EV1 13.56Mhz frequency

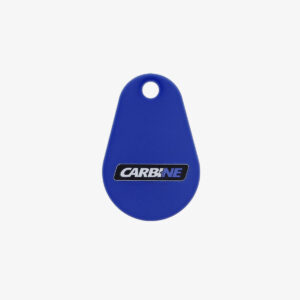

• RFID Cards, fobs, wristbands and stickers also available & sold separately
• Codes from 4 – 8 digits
• Guiding code – enter program false numbers before true code
• Vacation mode, lock out all users
• Can be put in passage mode, hold ‘set’ for 1 second
• Auto lock delay timer, 5-99 seconds. Pre set at 5 seconds
• Double authorisation mode possible, card and code
• ANSI G2
• C4 keyway (LW5)
• 60-70mm adjustable latch only, CAN NOT do 127mm
• Requires 4 x Duracell Procell AA batteries or good quality alkaline batteries only
• Batteries included
• Battery life of 5000 openings
• Satin Nickel & Matte Black finishes
• Please note we highly recommend this is installed by a professional locksmith. Damage caused by incorrect installation will not be covered by warranty

CEL2-3IN1-SL8SNKIT

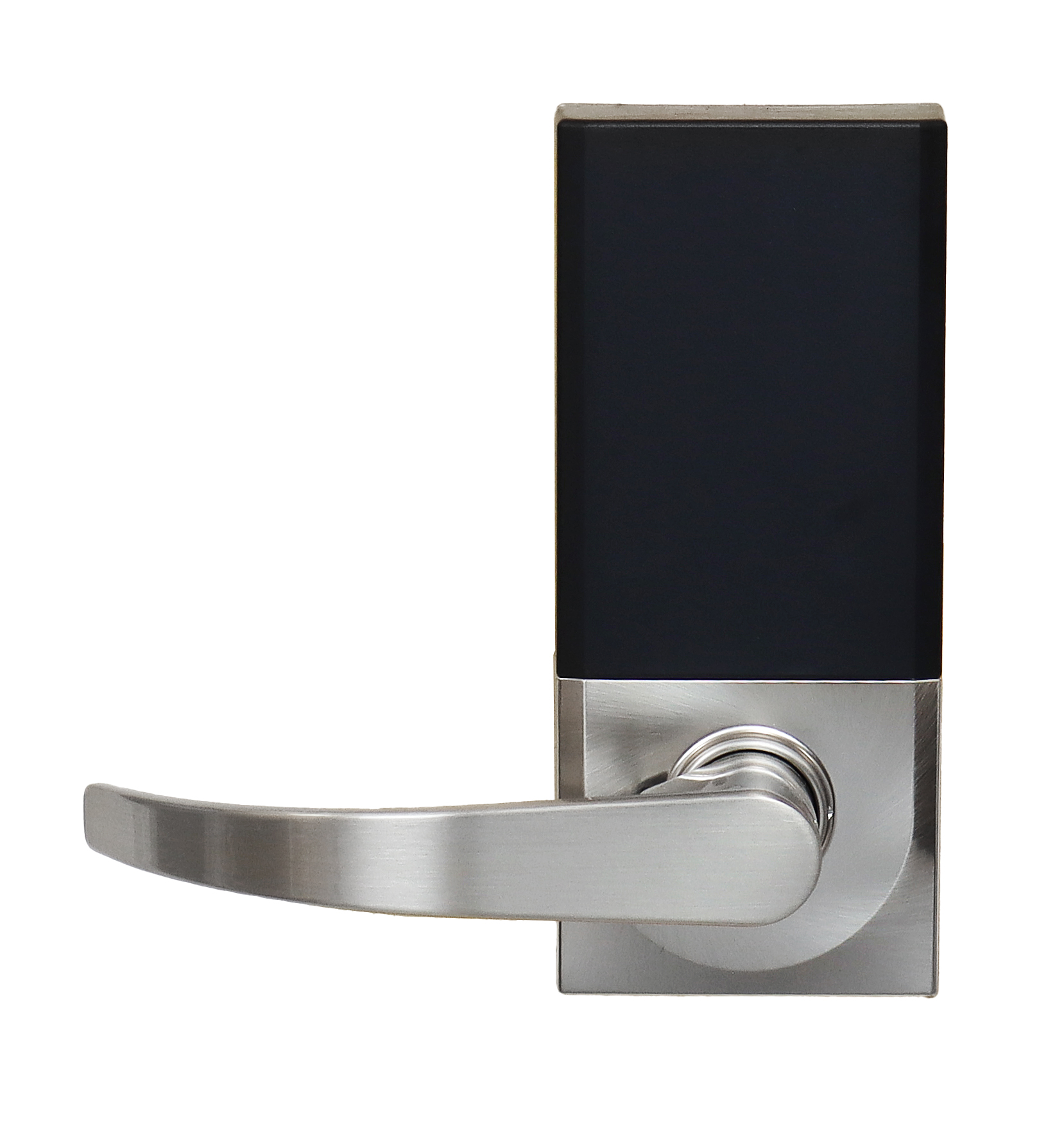

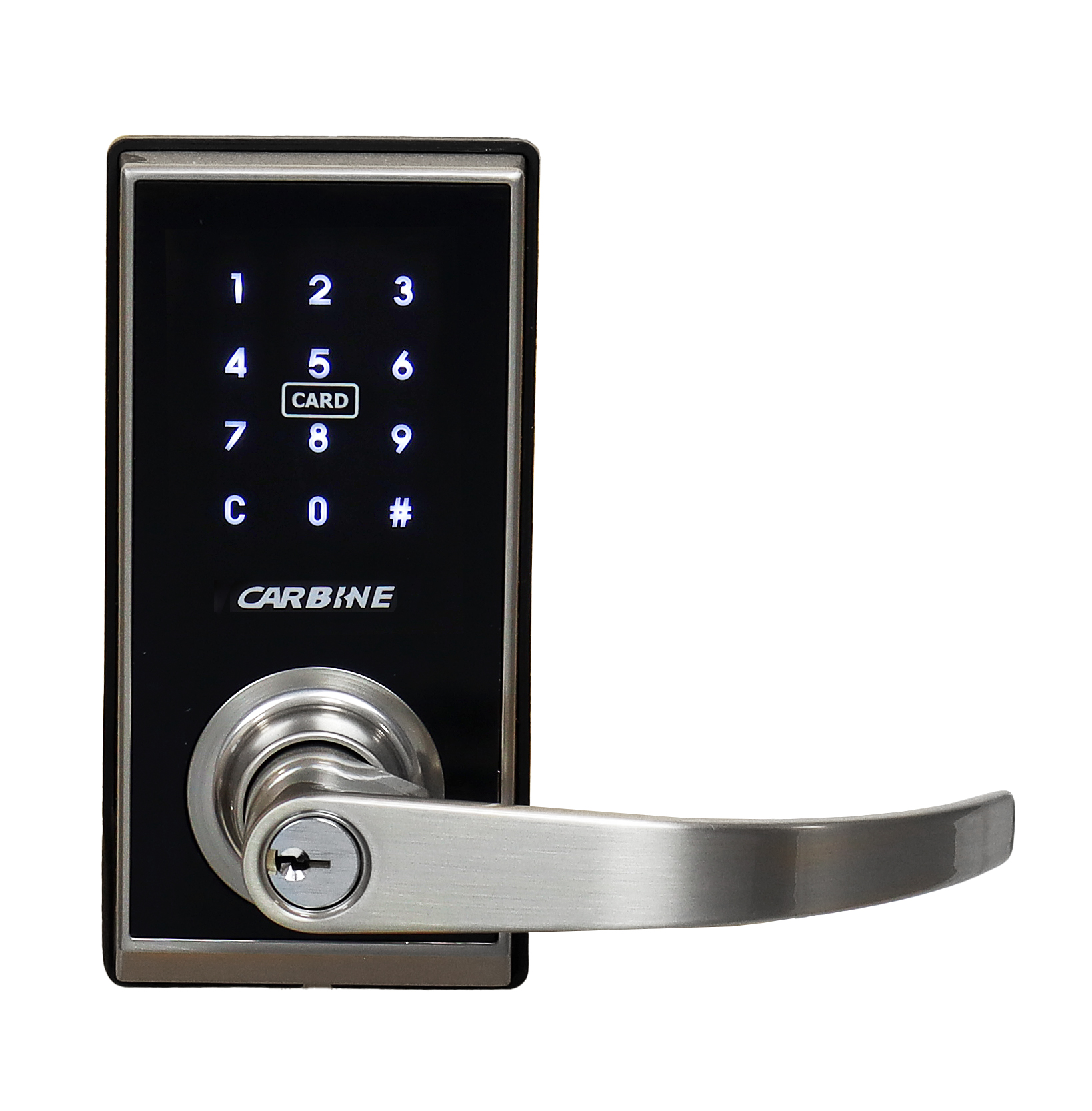

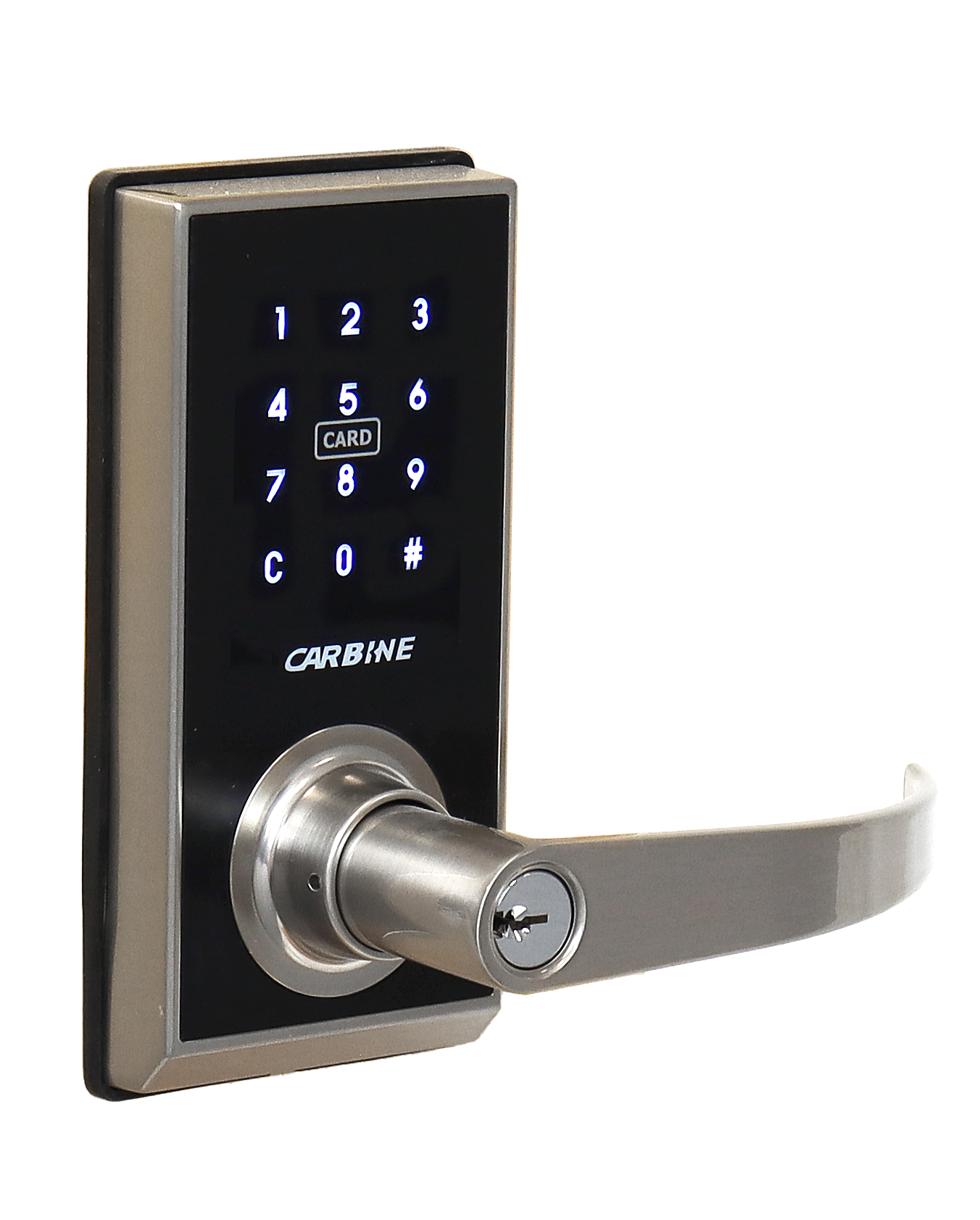

Carbine CEL2-3in1 Standalone non fire rated Electronic Leverset, With batteries, Satin Nickel

CEL2-3IN1-SL8MBKIT

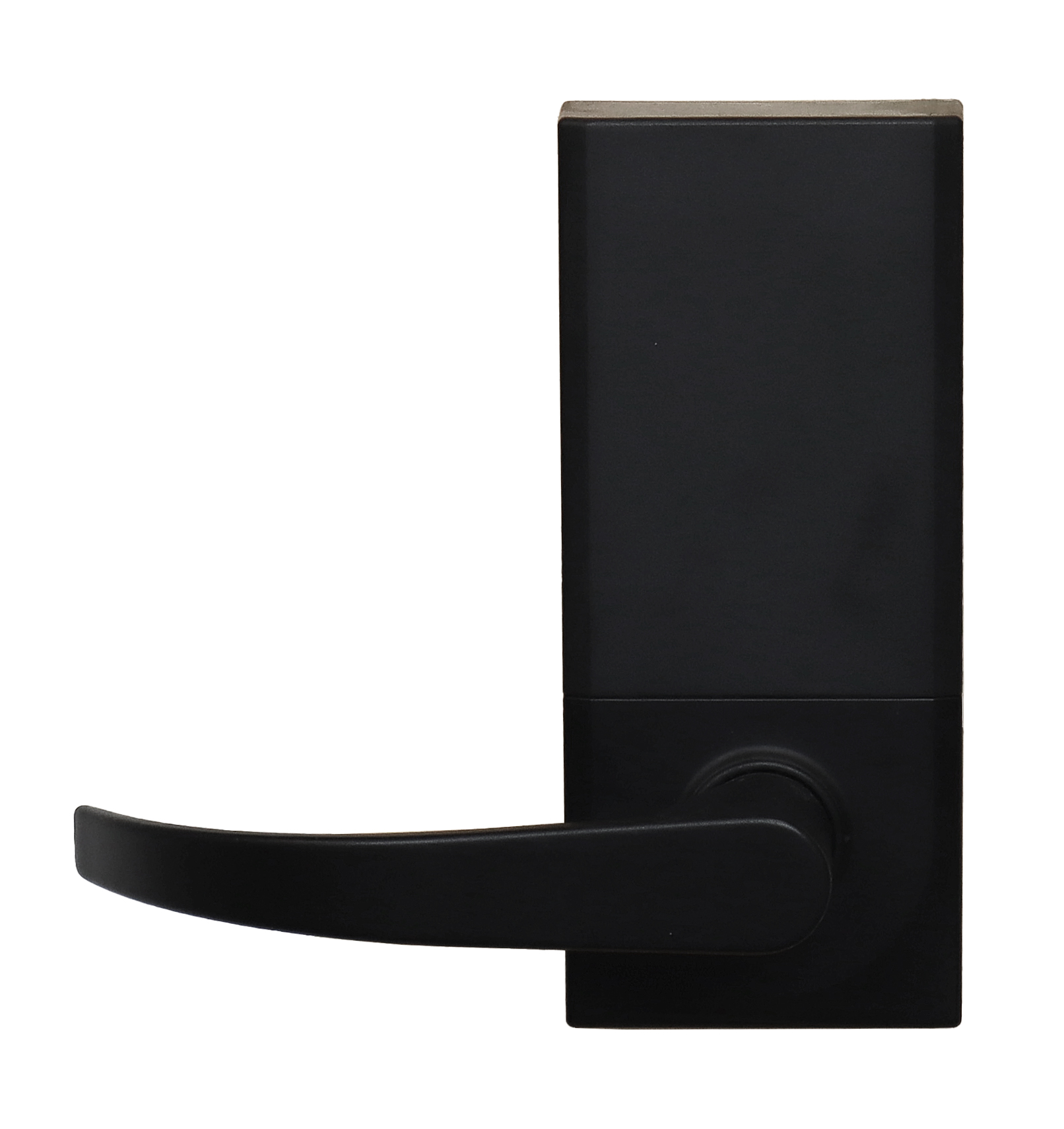

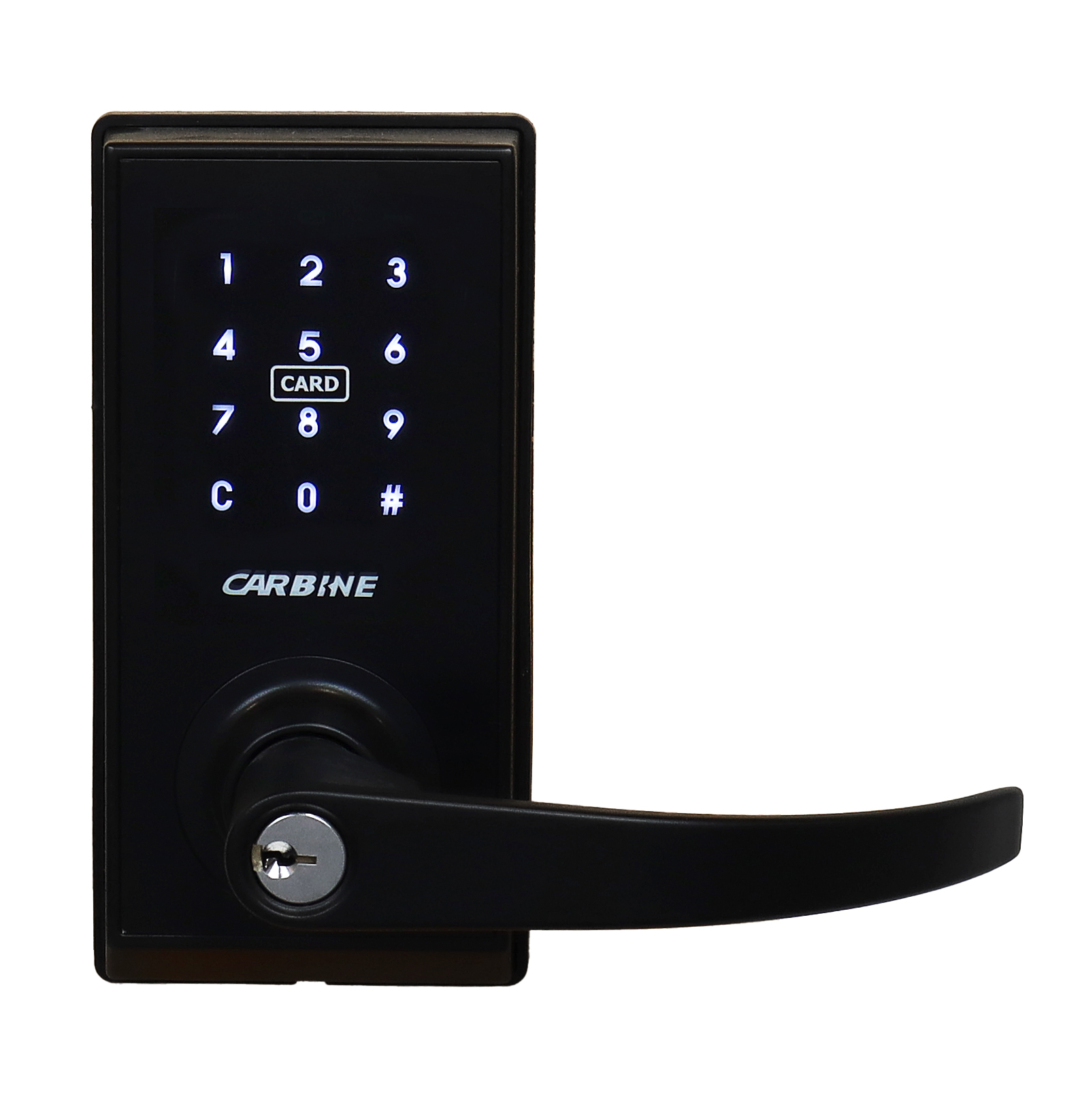

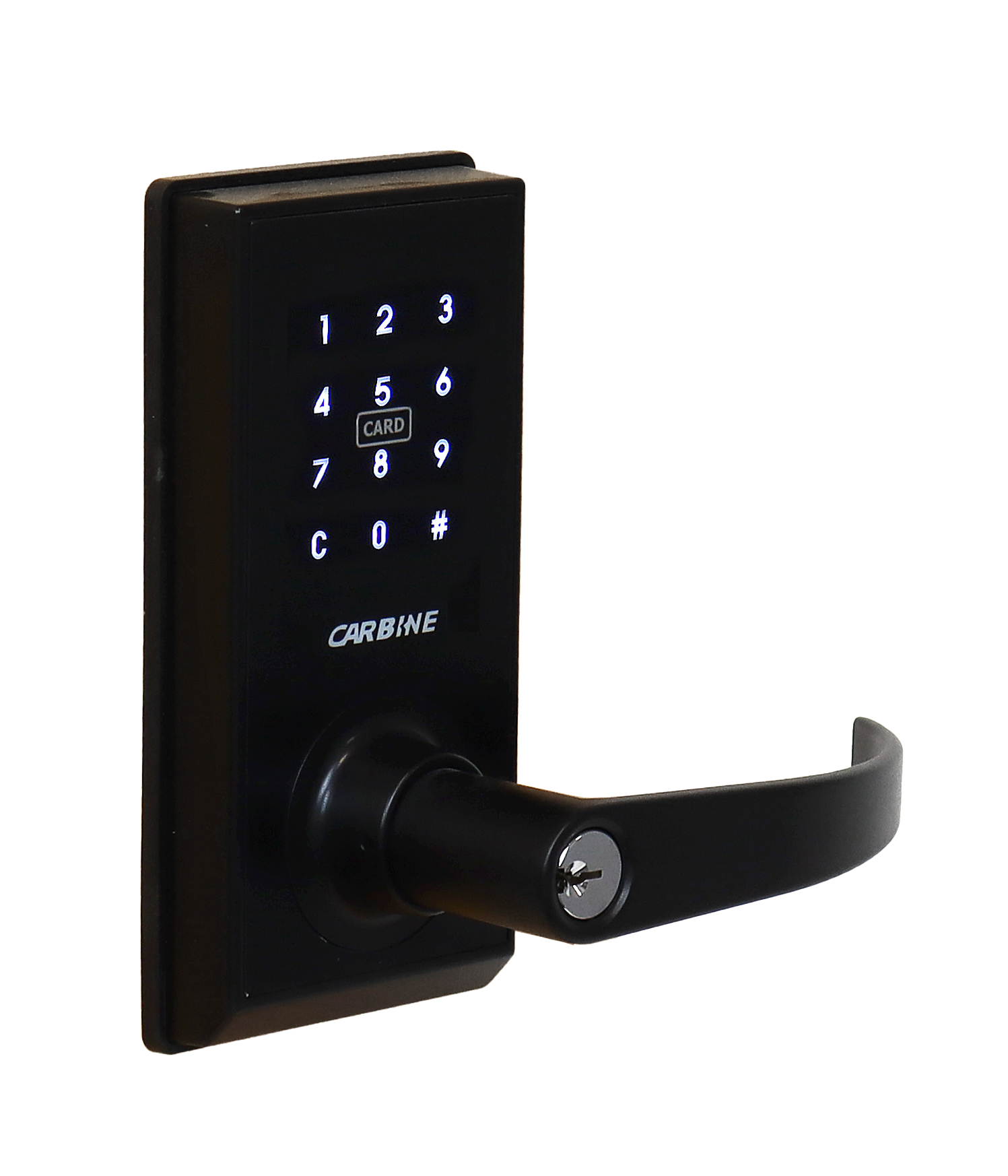

Carbine CEL2-3in1 Standalone non fire rated Electronic Leverset, With batteries, Matte Black

CEL2-3IN1-SL8SN-FRKIT

Carbine CEL2-3in1 Standalone fire rated Electronic Leverset, With batteries, Satin Nickel

CEL2-3IN1-SL8MB-FRKIT

Carbine CEL2-3in1 Standalone fire door Electronic Leverset, With batteries, Matte Black
