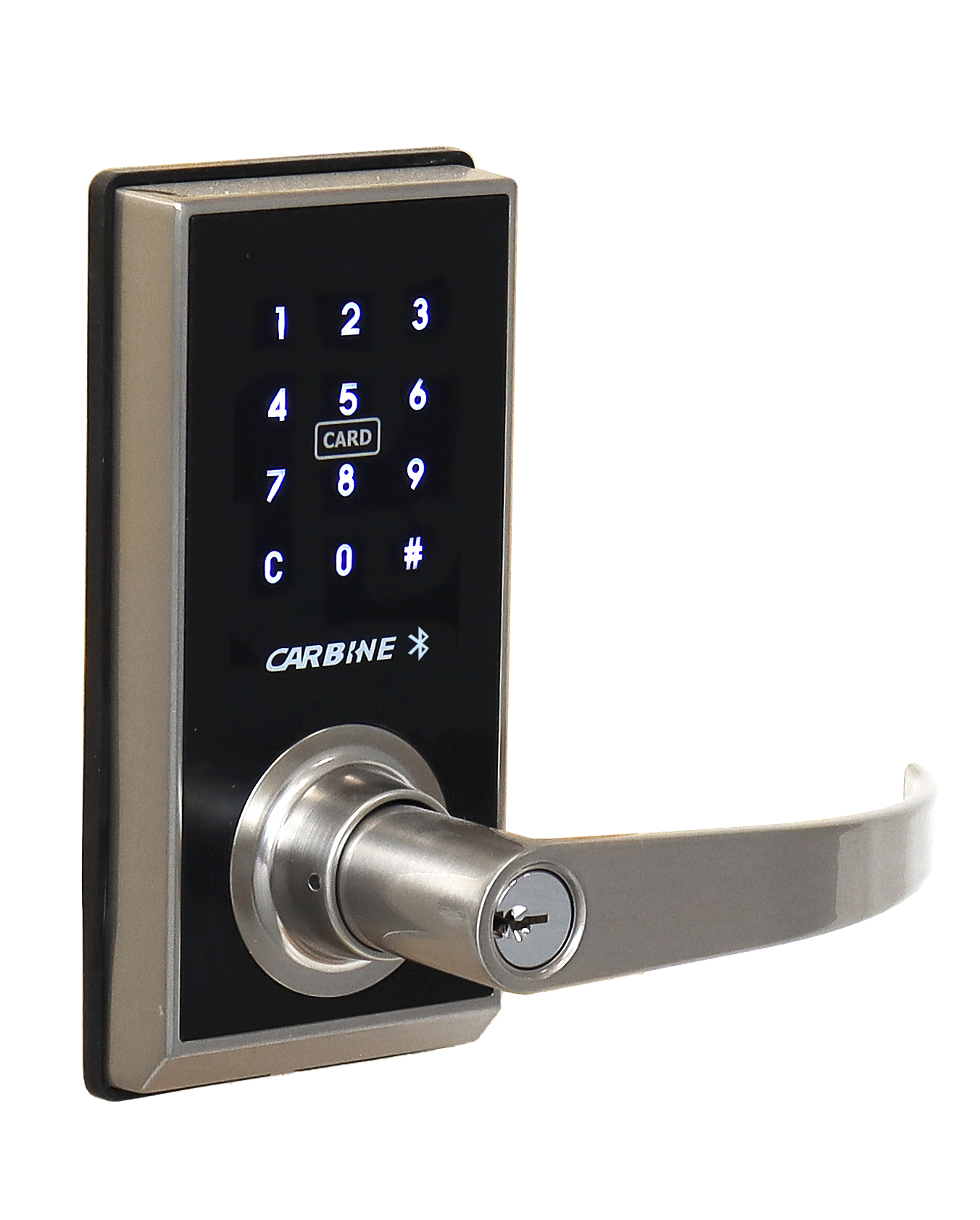

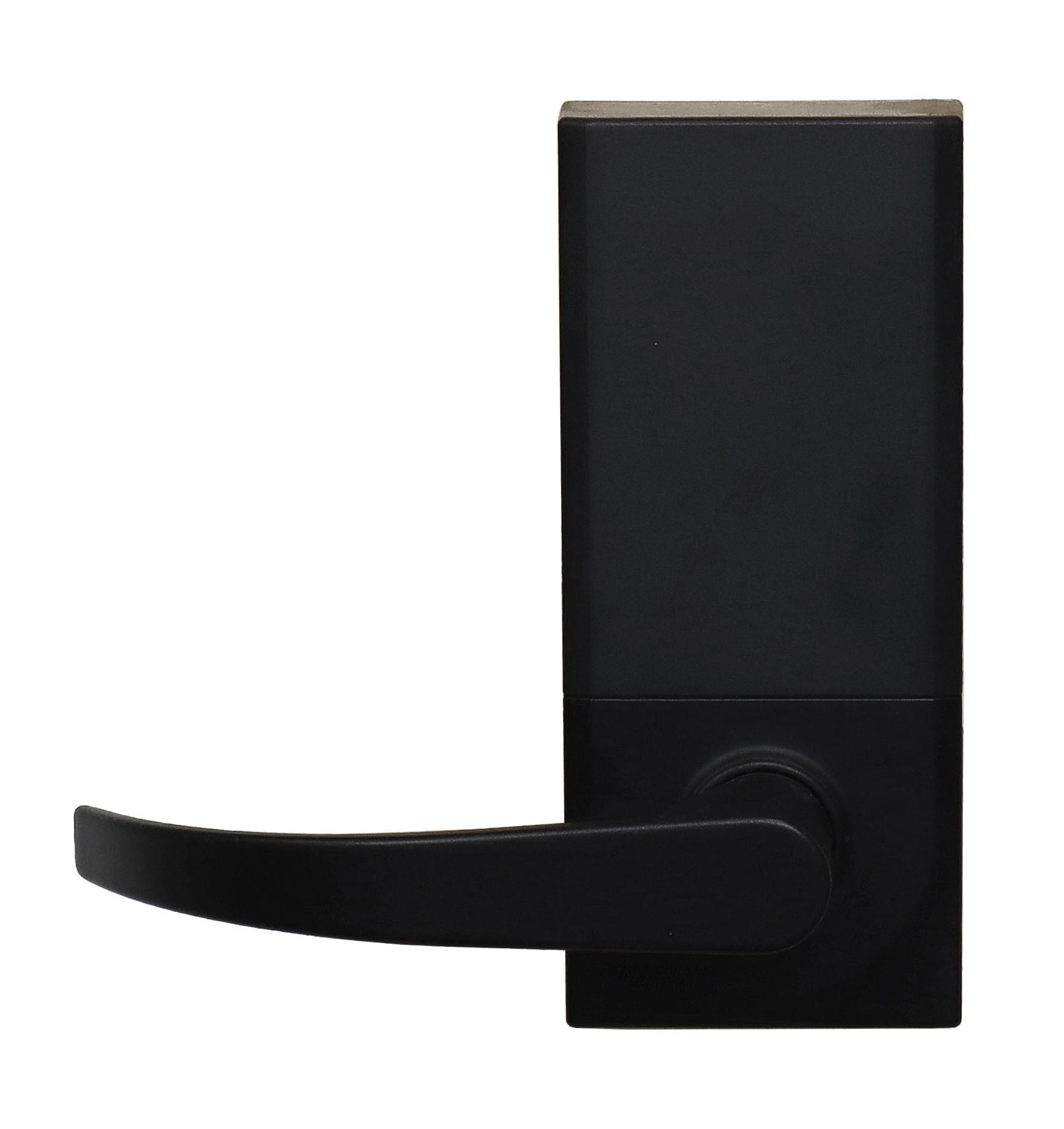

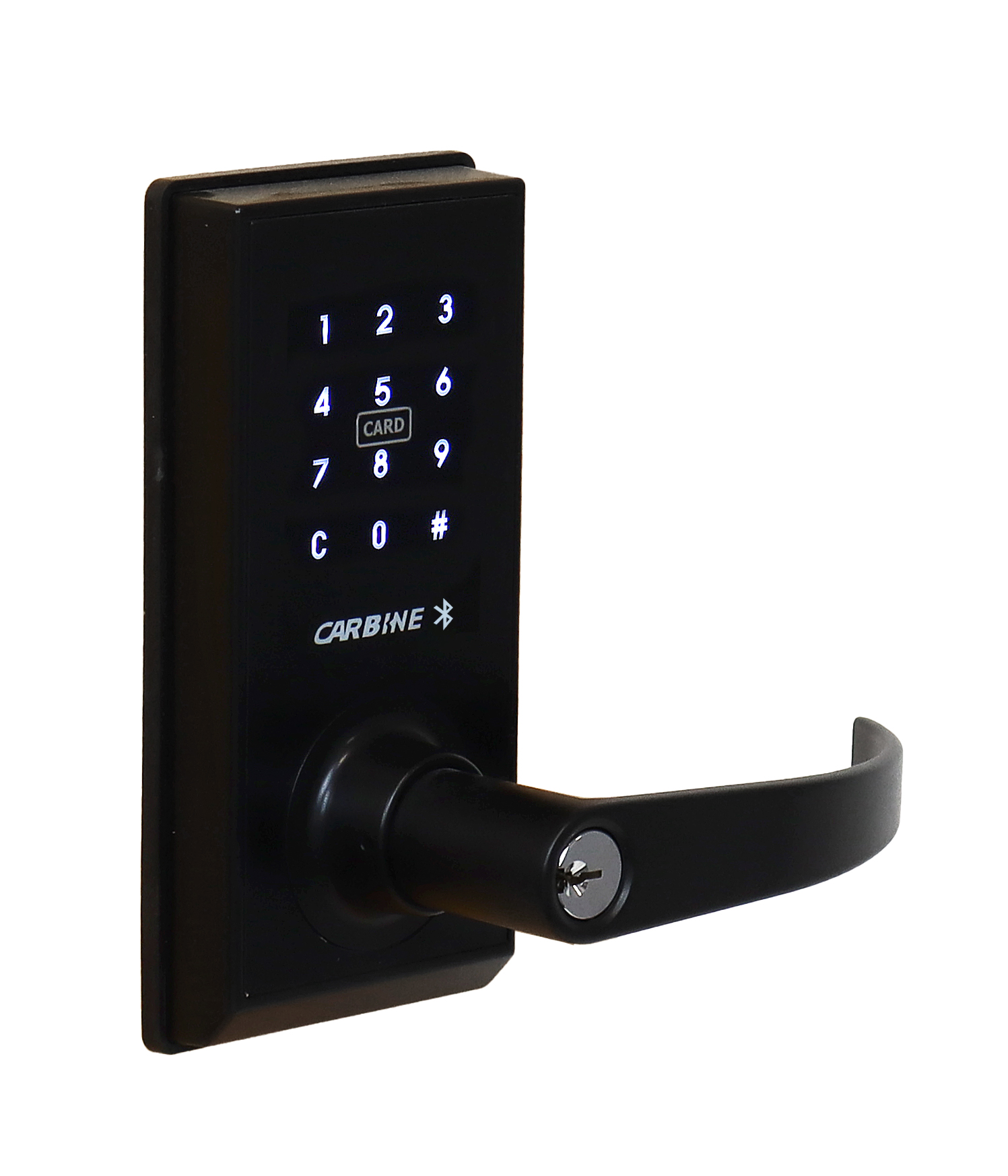

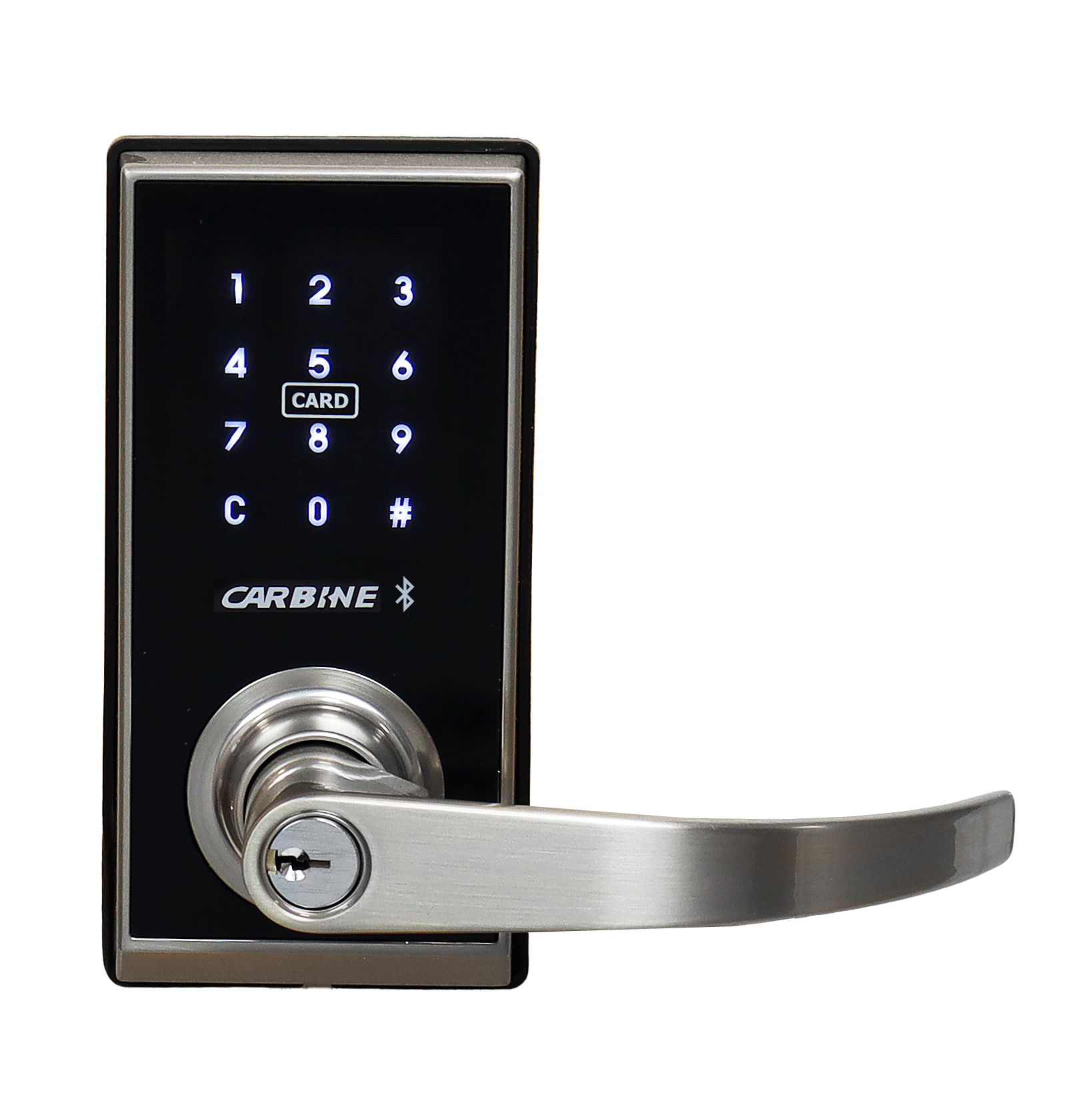

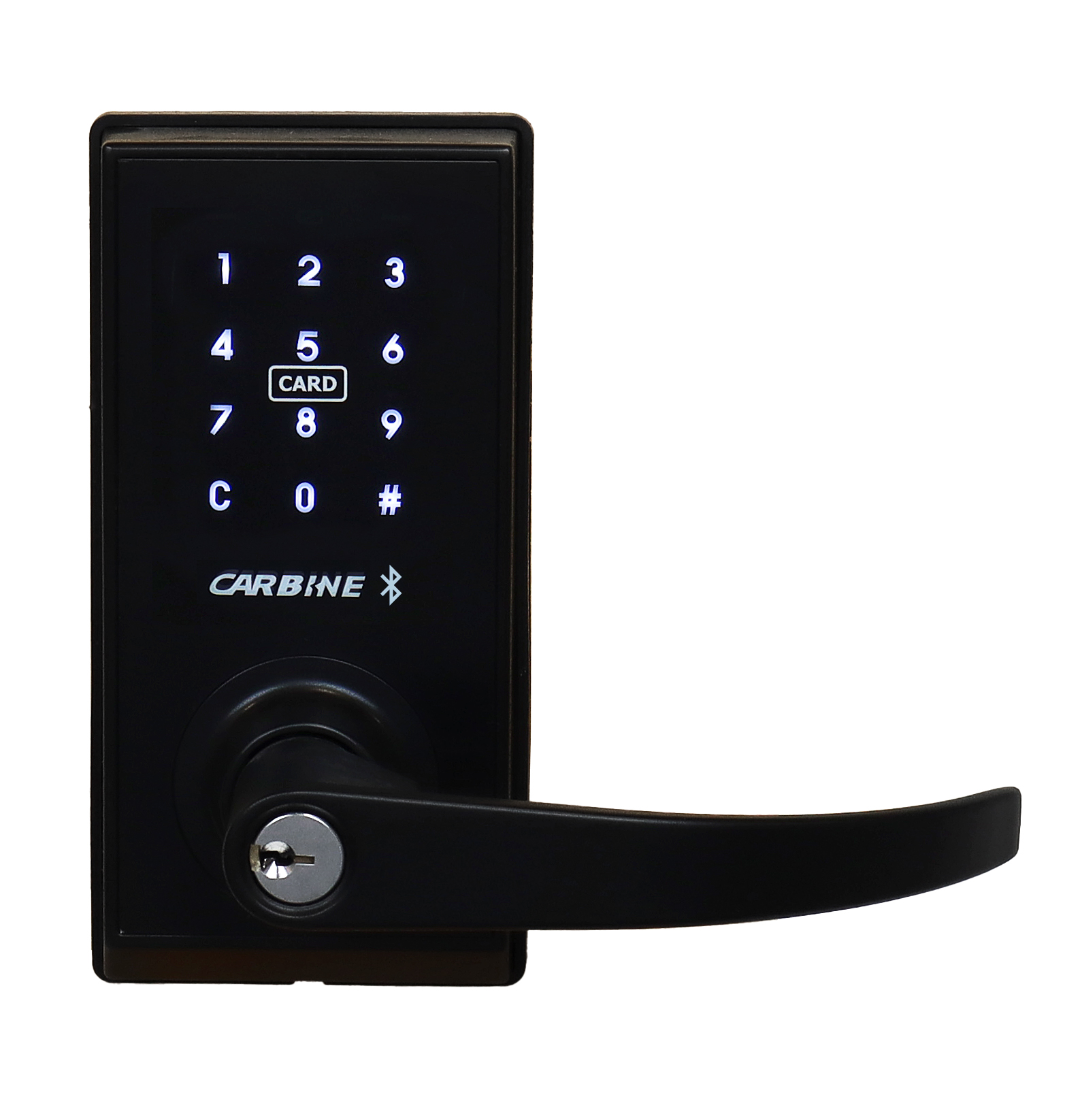

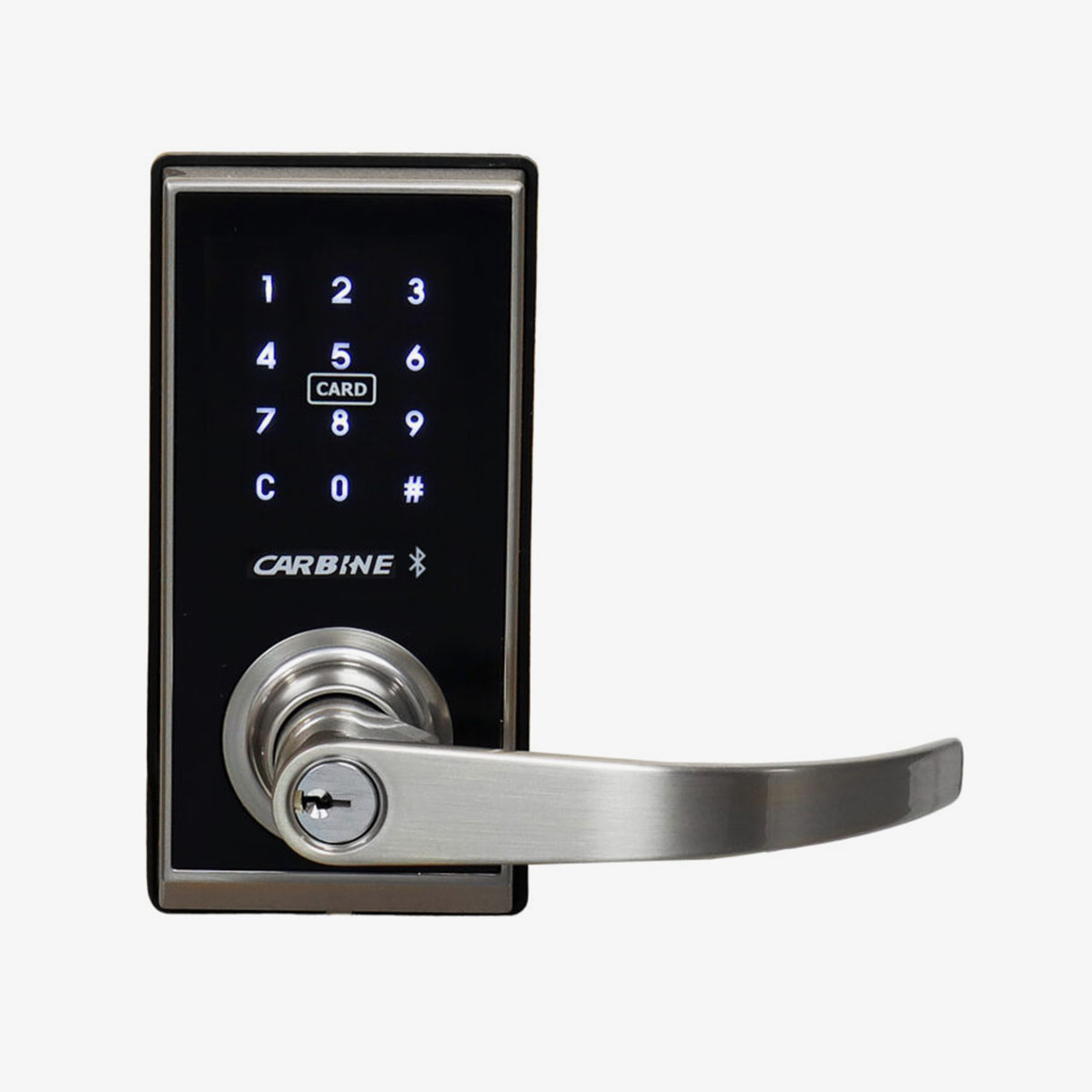

Carbine CEL2 Digital Leverset Bluetooth

The Carbine CEL2-BT Bluetooth electronic digital locks are available in a leverset and deadbolt model and in both satin nickel or matte black finishes.

Never worry about a lost key again as CEL2-BT has several keyless access options including Bluetooth access, a 4 to 8 digit code, NFC* enabled smartphone or via a number of RFID accessories.

CEL2-BT comes in a leverset or deadbolt option, as well as a 2 hour fire rated leverset model making the CEL2 a great selection for use on emergency exits or fire doors.*

CEL2-BT leversets have been designed to IP54 standards and are NCC compliant.

^We recommend checking your smartphone before purchasing or installing. If your phone is not compatible we suggest using the RFID sticker on the back of your phone. For fire rated details please visit www.carbine.com.au/fire-rated

• All the features of the CEL2-3IN1 standalone with the addition of Bluetooth functionality
• Download the app for easy access & programming
• Can program up to 10 Bluetooth users per lock
• Electronically send access to the lock via the app
• User friendly app, tried and tested
• Recommended for medium use installations
• New stylish escutcheon with lower profile
• Improved touchscreen and motor function
• Fits in standard 54 mm lockset hole, no additional drilling required
• Fits from 35-51mm thick doors
• Touch keypad with backlight
• Entry by bluetooth app, code, key or RFID media
• 1 programming code, 200 user codes or RFID cards
• 2 Hour fire rating (Note: separate model for fire door installations)
• IP Rating of IP54 (external)
• SL8 style lever which is NCC compliant
• Key override
• RFID entry
• Works on MIFARE S50EV1 13.56Mhz frequency
• RFID Cards, fobs, wristbands and stickers also available & sold separately
• Codes from 4 – 8 digits
• Guiding code – enter program false numbers before true code
• Vacation mode, lock out all users
• Can be put in passage mode, hold ‘set’ for 1 second
• Auto lock delay timer, 5-99 seconds. Pre set at 5 seconds
• Double authorisation mode possible, card and code
• ANSI Grade 2 compliant: Mechanical cycle test – 500,000 openings, Electronic entry test – 250,000 openings, Salt spray test – 240 hours – C4 keyway 6 pin PD style cylinder, keyed to 5 pin key
• 60-70mm adjustable latch only, CAN NOT do 127mm
• Requires 4 x Duracell Procell AA batteries or good quality alkaline batteries only
• Batteries included
• Battery life of 5000 openings
• Satin Nickel & Matte Black finishes
• Please note it is highly recommended this is installed by a professional locksmith. Damage caused by incorrect installation will not be covered by warranty

Carbine Connect App Features:

– Set up multiple locks
– Manage and give access to users via:
– QR code (for users to download the app)
– Keypad code
– RFID media
– Users can be set up with 3 access types: 1. Permanent (unless deleted by admin) 2. Time period access – for a limited time period 3. Scheduled access – only for certain times of day
– Can send QR code to a new user via the app while connected to the lock
– Auto unlock feature (optional) – automatically open your lock without opening the app, within 10 meters of Bluetooth transmission distance
– Event log – shows history of access events for the lock
– The Carbine Connect App completed Penetration Testing by a recognised authority, with a successful rating of “Low Risk”

CEL2-BT-SL8SNKIT

Carbine CEL2-3in1 Bluetooth non fire rated Electronic Leverset, With batteries, Satin Nickel

CEL2-BT-SL8MBKIT

Carbine CEL2-3in1 Bluetooth non fire rated Electronic Leverset, With batteries, Matte Black

CEL2-BT-SL8SN-FRKIT

Carbine CEL2-3in1 Bluetooth fire door Electronic Leverset, With batteries, Satin Nickel

CEL2-BT-SL8MB-FRKIT

Carbine CEL2-3in1 Bluetooth fire door Electronic Leverset, With batteries, Matte Black
